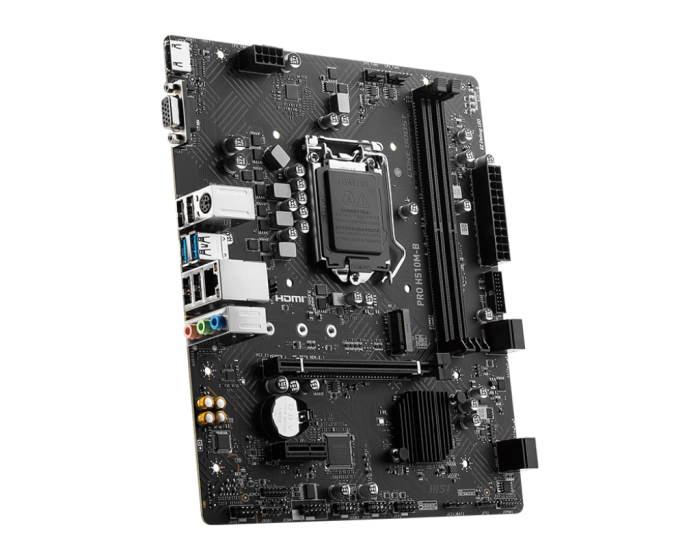

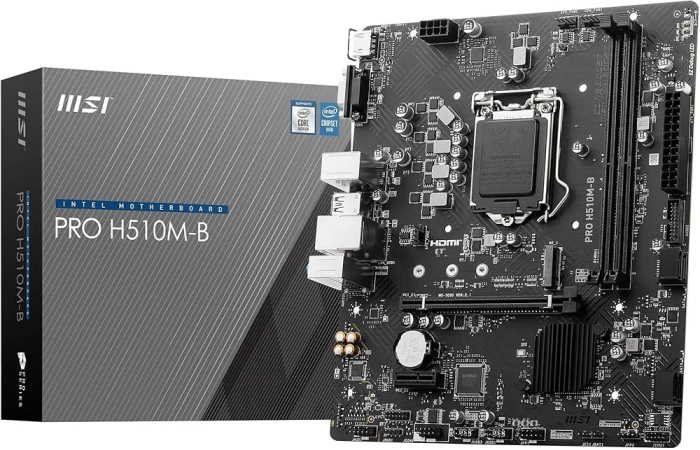

MSI PRO H510M-B

Motherboard • MSI • $ 117.90

Add to PC Build Add to Amazon Cart Compare

Overview

Reliable Foundation for Everyday Computing

The MSI PRO H510M-B is a Micro-ATX motherboard designed to provide a stable and cost-effective platform for Intel 10th and 11th generation processors (LGA 1200). Whether you're building a budget office PC, a home theater system, or an entry-level gaming rig, this board delivers essential features without unnecessary extras, making it an excellent choice for value-conscious builders.

Key Features and Performance

Intel LGA 1200 Socket: Supports a wide range of Intel Core, Pentium, and Celeron processors, offering flexibility for upgrades.
DDR4 Memory Support: Two DIMM slots accommodate up to 64GB of DDR4 RAM at speeds up to 2933 MHz (with 11th Gen CPUs), ensuring smooth multitasking and application performance.
PCIe 3.0 Expansion: One PCIe 3.0 x16 slot for a dedicated graphics card or other high-bandwidth cards, plus a PCIe 3.0 x1 slot for additional expansion.
Fast Storage Options: An M.2 slot supports NVMe SSDs for rapid boot times and file transfers, while four SATA 6Gb/s ports provide ample room for traditional drives.

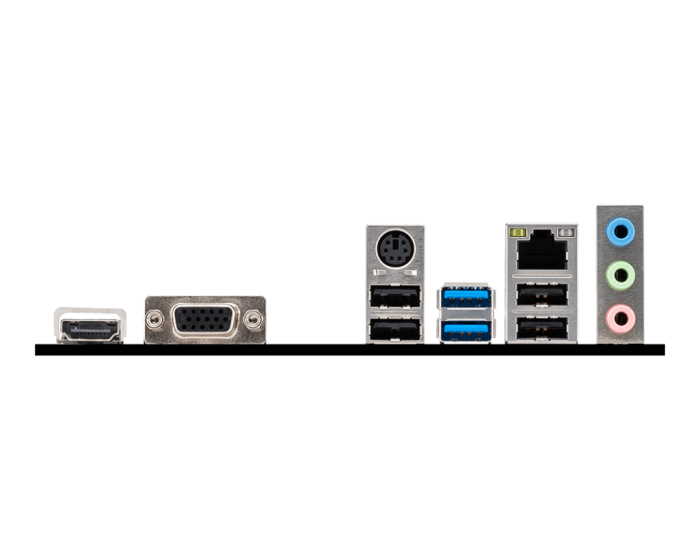

Essential Connectivity: Includes HDMI and VGA outputs for integrated graphics, USB 3.2 Gen 1 Type-A ports, USB 2.0 ports, and a Gigabit LAN port for reliable networking.
High-Quality Audio: The Realtek ALC897 codec delivers 7.1-channel audio for an immersive listening experience.

Built for Productivity and Entertainment

This motherboard is ideal for users who need a dependable base for everyday tasks such as web browsing, document editing, media streaming, and light photo editing. Its compact Micro-ATX form factor fits neatly into most cases, making it a great choice for small form factor builds. The inclusion of both HDMI and VGA ports allows for flexible display setups, especially when using Intel integrated graphics.

With MSI's renowned quality and rigorous testing, the PRO H510M-B ensures long-term stability. The board features a simple yet robust design, with clear labeling and an intuitive BIOS that makes system setup straightforward even for first-time builders.

Use Cases

Office and Productivity: Perfect for spreadsheets, word processing, and business applications.
Home Theater PC (HTPC): Compact size and HDMI output make it suitable for media centers.
Entry-Level Gaming: Pair with a discrete GPU for casual gaming at 1080p.
Budget Builds: Offers all essential features at an affordable price point.

Upgrade your workspace or create a new system with the MSI PRO H510M-B, a motherboard that balances performance, reliability, and value.

Key Specifications

Form Factor: Micro-ATX

Socket: LGA 1200

RAM Type: DDR4

Max. RAM: 64GB

RAM Slots: 2

Chipset: Intel H470

Connectivity

1X PCI Express 3.0 x16 Slot, 1X PCI Express 3.0 x1 Slots, 4X SATA 6Gbs, 1X M.2, 1X HDMI™, 1X VGA, 1X Keyboard / Mouse, 2X USB 3.2 Gen 1 5Gbps (Type-A), 1X LAN port, 3X Audio Connectors, 4X USB 2.0, Realtek® ALC897 Codec 7.1-Channel

Detailed Parameters

Platform:: Intel
Socket:: LGA 1200
RAM Type:: DDR4
Number of RAM Slots:: 2
Maximum RAM/slot:: 32
Maximum RAM Capacity in GB:: 64
PCI Express Version:: 3
Form Factor:: Micro-ATX
Maximum RAM Speed in MHz:: 2933

Where to Buy

Amazon

Pros

Supports both 10th and 11th Gen Intel Core processors
Compact Micro-ATX size fits in most cases
M.2 slot for fast NVMe SSDs
Includes HDMI and VGA for flexible display options
Affordable price point for budget builds

Cons

Only two RAM slots limit future expansion
No Wi-Fi or Bluetooth built-in
Chipset is H470, not the newer H510 (though similar features)

Frequently Asked Questions

Does the MSI PRO H510M-B support Intel 11th Gen processors out of the box?

Yes, the MSI PRO H510M-B is designed for Intel 10th and 11th Gen processors (LGA 1200). However, to ensure compatibility with 11th Gen CPUs, it's recommended to update the BIOS to the latest version if needed.

Can I use two M.2 SSDs on this motherboard?

No, the MSI PRO H510M-B has only one M.2 slot. If you need more M.2 storage, consider using a PCIe adapter card in the x16 slot, but that would limit your GPU options.

What is the maximum RAM speed supported?

The maximum memory speed is 2933 MHz when using 11th Gen Intel processors. With 10th Gen CPUs, the speed is limited to 2666 MHz. The board supports up to 64GB of DDR4 RAM across two slots.

Does this motherboard have integrated Wi-Fi?

No, the MSI PRO H510M-B does not include built-in Wi-Fi or Bluetooth. You will need to use an Ethernet cable for networking or install a Wi-Fi adapter (PCIe or USB) if wireless connectivity is required.
