ShangZhaoYuan B85M Pro
Overview
ShangZhaoYuan B85M Pro Motherboard: A Budget-Friendly LGA 1150 Solution
The ShangZhaoYuan B85M Pro is a Micro-ATX motherboard designed for Intel's LGA 1150 platform, offering a cost-effective way to build or upgrade a desktop PC. Whether you're assembling a budget gaming rig, an office workstation, or a home theater PC, this board provides essential features and reliable performance for everyday tasks and light gaming.
Key Features and Connectivity

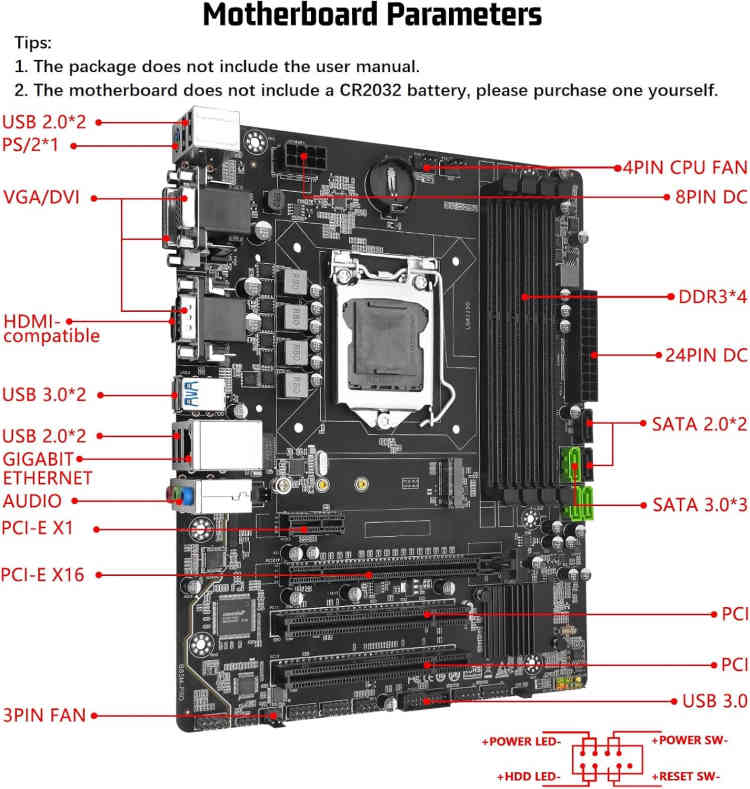

- Socket & Chipset: Supports Intel Core i7/i5/i3, Pentium, Celeron, and Xeon E3 processors on the LGA 1150 socket, with the Intel B85 chipset providing stability and compatibility.
- Memory: Four DDR3 DIMM slots support up to 32GB of RAM (8GB per slot) with speeds up to 1866MHz, allowing for smooth multitasking and responsive system performance.
- Storage & Expansion: Includes a single M.2 slot with NVMe support for high-speed SSDs, alongside three SATA 3.0 and two SATA 2.0 ports for traditional drives. Expansion options include one PCIe 3.0 x16 slot for a graphics card, one PCIe 3.0 x1 slot, and two legacy PCI slots for additional cards.

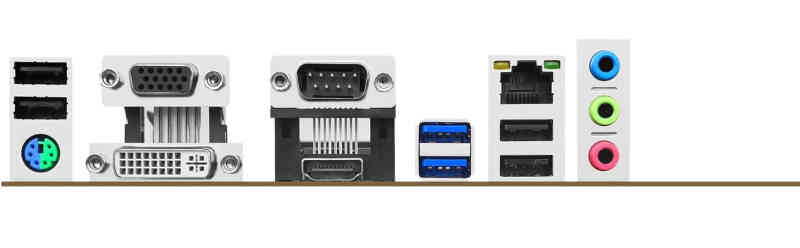

- I/O Ports: Rear panel offers HDMI, VGA, and DVI outputs for flexible display connectivity, plus USB 3.0 and USB 2.0 ports, a Gigabit LAN port, three audio jacks, and a PS/2 combo port. An onboard USB 3.0 header and a COM port are also available for internal connections.
Performance and Use Cases
With support for up to 32GB of DDR3 RAM and PCIe 3.0, the B85M Pro can handle everyday computing, office applications, and even moderate gaming when paired with a compatible graphics card. The M.2 NVMe slot is a standout feature, allowing users to boot from ultra-fast SSDs and significantly reduce load times. This makes it an excellent choice for upgrading an older system or building a budget-friendly PC from spare parts.
Who Should Buy the ShangZhaoYuan B85M Pro?
This motherboard targets budget-conscious builders, DIY enthusiasts, and those looking to revive older Intel CPUs. It's ideal for:
- Budget gaming PCs using 4th Gen Core i5 or i7 processors.
- Office and productivity builds that require reliable performance.
- Home theater PCs (HTPCs) needing multiple display outputs.
- Upgrading legacy systems with modern NVMe storage.
While it lacks advanced features like overclocking support or USB 3.1 Gen2, the B85M Pro delivers solid fundamentals at an attractive price point.
Key Specifications
Detailed Parameters
- Platform:
- Intel
- Socket:
- LGA 1150
- RAM Type:
- DDR3
- Number of RAM Slots:
- 4
- Maximum RAM/slot:
- 8
- Maximum RAM Capacity in GB:
- 32
- PCI Express Version:
- 3
- Form Factor:
- Micro-ATX
- Maximum RAM Speed in MHz:
- 1866
Pros
- Supports M.2 NVMe SSDs for fast boot and load times
- Four DDR3 slots allow up to 32GB RAM
- Includes legacy PCI slots for older expansion cards
- Multiple display outputs (HDMI, VGA, DVI) for flexible setups
- Budget-friendly price for LGA 1150 platform
Cons
- No USB 3.1 Gen2 or Type-C ports
- Limited to DDR3 memory (no DDR4 support)
- No built-in Wi-Fi or Bluetooth
