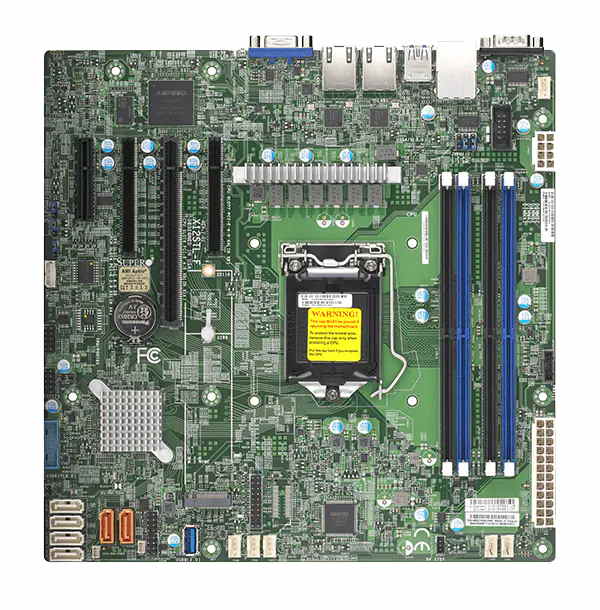

Supermicro X12STL-F Micro-ATX Server Motherboard
Overview
The Supermicro X12STL-F Micro-ATX Server Motherboard is a robust, feature-rich platform designed for entry-level servers, edge computing, and small business IT environments. Built on the Intel C252 chipset and supporting Intel Xeon E-2300 and Pentium processors (LGA 1200), this motherboard delivers reliable performance, advanced connectivity, and enterprise-grade manageability in a compact Micro-ATX form factor.
Key Features
- Processor Support: 10th Gen Intel Xeon E-2300 and Pentium CPUs (LGA 1200) with up to 8 cores and 16 threads.
- Memory Capacity: 4 DIMM slots supporting DDR4 ECC UDIMM up to 128GB, speeds up to 3200MHz.
- PCIe 4.0 Expansion: One x16 and two x8 slots (from CPU) plus one PCIe 3.0 x4 slot (from PCH) for flexible I/O.
- Storage Options: 6 SATA 6Gbps ports with RAID 0,1,5,10 support and one M.2 slot (PCIe 3.0 x4 or SATA) for boot drives.
- Networking: Dual 1GbE LAN ports (Intel I210) for reliable network connectivity.
- Management: Dedicated LAN port for IPMI 2.0 with KVM and virtual media (AST2500 BMC).
- USB & Video: 4 USB 2.0 and 5 USB 3.2 Gen1 ports; VGA for console output.
Performance and Reliability
With PCIe 4.0 support, the X12STL-F delivers double the bandwidth of previous generations, enabling faster NVMe SSDs and high-speed network cards. The Intel C252 chipset provides enterprise-class stability, while ECC memory ensures data integrity—critical for server workloads. The board supports Intel Rapid Storage Technology for RAID configurations, offering redundancy and performance options.
Use Cases
This motherboard is ideal for:
- Entry-level rackmount or tower servers for small businesses.
- Edge computing nodes requiring low power and high reliability.
- Network-attached storage (NAS) builds with RAID support.
- Virtualization hosts running multiple VMs.
- Industrial and embedded applications needing long-term availability.
Why Choose the X12STL-F?
Supermicro is renowned for server-grade quality, and the X12STL-F upholds that reputation with premium components, extensive testing, and a 3-year warranty. Its Micro-ATX size fits standard cases while offering expansion capabilities typically found in larger boards. Whether you're upgrading an existing server or building a new one, the X12STL-F provides a solid foundation at a competitive price.
Key Specifications
Detailed Parameters
- Platform:
- Intel
- Socket:
- LGA 1200
- RAM Type:
- DDR4
- Number of RAM Slots:
- 4
- Maximum RAM/slot:
- 32
- Maximum RAM Capacity in GB:
- 128
- PCI Express Version:
- 4
- Form Factor:
- Micro-ATX
- Maximum RAM Speed in MHz:
- 3200
Pros
- Supports Intel Xeon E-2300 and Pentium processors (LGA 1200)
- PCIe 4.0 slots for high-speed expansion
- ECC memory support for data integrity
- IPMI 2.0 remote management with dedicated LAN
- Compact Micro-ATX size fits many cases
Cons
- Limited to 128GB RAM (4 slots)
- No built-in 10GbE networking
- Only one M.2 slot (no U.2 or NVMe via PCIe 4.0 on M.2)
