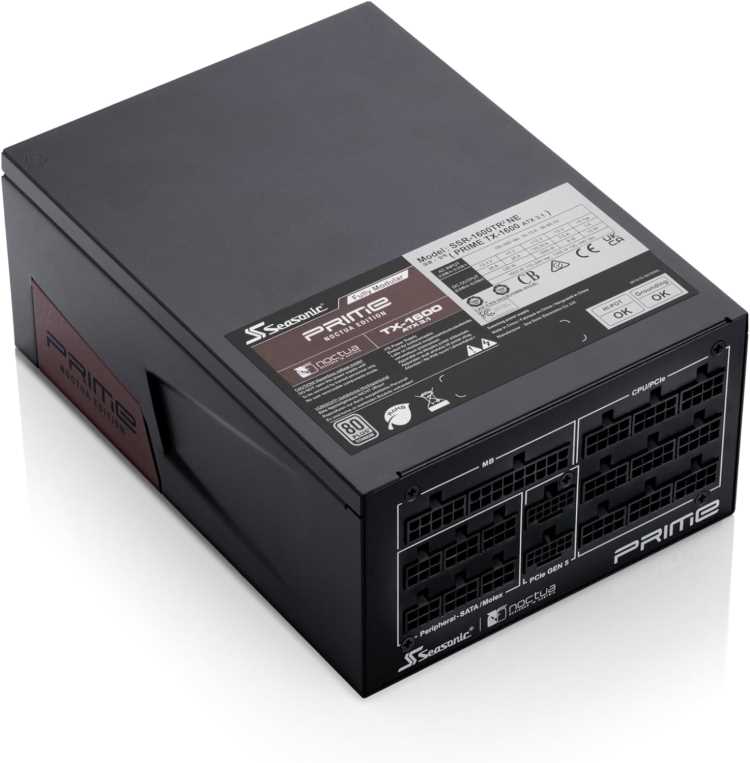

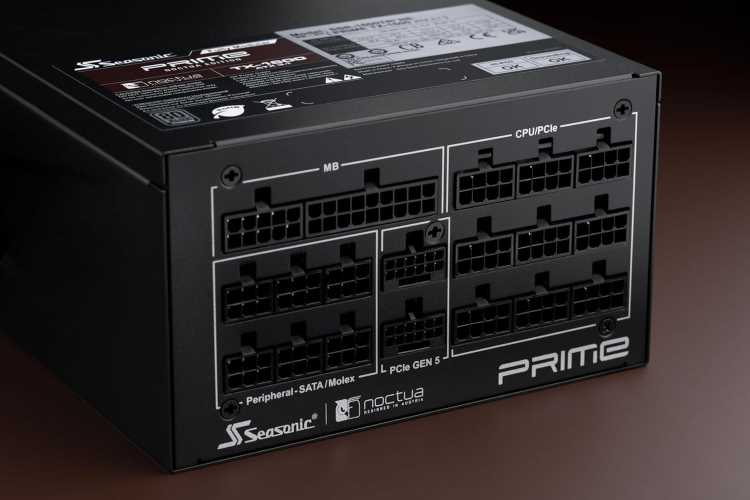

Seasonic Prime TX-1600 Noctua Edition

PSU • Seasonic • $ 654.00

Add to PC Build Add to Amazon Cart Compare

Overview

Ultimate Power Meets Whisper-Quiet Operation

The Seasonic Prime TX-1600 Noctua Edition is the pinnacle of power supply engineering, combining Seasonic's renowned Prime Titanium platform with Noctua's award-winning cooling technology. This 1600-watt fully modular PSU delivers flawless, stable power for the most demanding systems, while the integrated Noctua NF-A12x25 fan ensures near-silent operation even under heavy loads.

Designed for Enthusiasts and Professionals

Whether you're building a multi-GPU workstation, a high-end gaming rig, or a content creation powerhouse, the TX-1600 Noctua Edition provides the headroom and reliability you need. With 80 PLUS Titanium certification (up to 94% efficiency), it reduces energy waste and heat, keeping your system cool and your electricity bills lower.

Key Features

1600W Continuous Power: Single +12V rail delivers massive, stable power for even the most power-hungry components.
Noctua NF-A12x25 Fan: World-class 120mm fan with SSO2 bearing, renowned for ultra-quiet operation and long lifespan.
Hybrid Digital Fan Control: Semi-passive mode keeps the fan off under low loads for silent operation, with a smart toggle for continuous cooling.
ATX 3.1 & PCIe 5.1 Ready: Includes native 12V-2×6 connectors for next-gen GPUs, ensuring compatibility and safety.
Fully Modular Cables: Flat, black cables for clean builds and easy cable management.
Comprehensive Protections: OVP, UVP, OPP, OCP, OTP, SCP safeguard your valuable components.

Performance and Efficiency

Seasonic's Prime platform is legendary for its voltage regulation and ripple suppression. The TX-1600 Noctua Edition maintains tight ±0.5% voltage regulation and ultra-low ripple, ensuring stable overclocks and long-term component health. The 80 PLUS Titanium efficiency means less heat and lower operating costs.

Ideal Use Cases

High-end gaming PCs with multiple GPUs (e.g., RTX 4090 SLI).
Workstations for 3D rendering, video editing, and scientific computing.
Servers and mining rigs requiring 24/7 reliability.
Enthusiasts who demand silence without compromising performance.

Backed by a 12-year warranty, the Seasonic Prime TX-1600 Noctua Edition is an investment in quality and peace of mind. Elevate your build with the best PSU on the market.

Key Specifications

Connector Type: ATX12V / EPS12V / PCIe (fully modular, includes ATX 3.1 / PCIe 5.1 “12V-2×6” connector)

Output Wattage: 1600 Watts continuous (single +12 V rail)

Form Factor: ATX (210 × 150 × 86 mm)

Wattage: 1600W

Cooling Method: Air-cooled, 120 mm Noctua NF-A12x25 HS-PWM (SSO2 / hydraulic bearing), with hybrid digital fan control (semi-passive)

Design: Fully modular

Protections: OVP, UVP, OPP, OCP, OTP, SCP

Efficiency: 80 PLUS Titanium certified (≈ 94 % @ 50 % load)

Cable Set: 1X 24-pin ATX (20+4) (modular) 3X 4+4-pin EPS12V (CPU) 6X 6+2-pin PCIe 2X 12+4-pin (12V-2×6) PCIe (for high power GPU) 16X SATA (plus 2 additional SATA 3.3V) 3X 4-pin Peripheral (Molex) 1X Floppy-drive adapter

Detailed Parameters

Rated Power Output in Watts:: 1600
Form Factor:: ATX, EPS

Where to Buy

Amazon

Pros

Ultra-quiet Noctua fan with hybrid mode
80 PLUS Titanium efficiency (up to 94%)
ATX 3.1 and PCIe 5.1 ready with native 12V-2u00d76 connectors
Fully modular for clean cable management
12-year manufacturer warranty

Cons

Very expensive compared to other 1600W PSUs
Large physical size may not fit smaller cases
No RGB lighting (if that's desired)

Frequently Asked Questions

Is the Seasonic Prime TX-1600 Noctua Edition compatible with ATX 3.0 and PCIe 5.0 GPUs?

Yes, it is fully backward compatible with ATX 3.0 and PCIe 5.0. It includes native 12V-2u00d76 connectors (which are backward compatible with 12VHPWR) and also provides standard 6+2 pin PCIe connectors for older GPUs.

How quiet is the Noctua fan in this PSU?

The Noctua NF-A12x25 fan is one of the quietest on the market. In hybrid mode, the fan stops completely under low loads (below ~40% load), and even under full load, it operates at a very low noise level, typically below 20 dB(A).

What is the warranty period for the Seasonic Prime TX-1600 Noctua Edition?

Seasonic offers a 12-year manufacturer warranty for this PSU, reflecting its high reliability and durability.
